MGC Pump Clip Dock

Part# MGC-DOCK-PUMP

MGC Pump Clip Dock Wall Mount

pn: MGC-WMDOCK-PUMP
MGC Pump Clip Dock Front MGC Pump Clip Dock Wall Mount Front

Detectors sold separately.
Not included with Dock.
Assembled in the U.S.A.
Sold through distributors worldwide.

Why test just one when you can test 4!

The Gas Clip Technologies MGC Pump Clip Dock is an all-in-one stand-alone docking station designed for maximum testing efficiency and portability. It tests up to four detectors simultaneously, reducing the testing time and gas usage.

It's easy to use.

With only two buttons, it’s simple to train workers how to use it for regular bump tests, occasional calibrations, or to deactivate detectors.

It's portable!

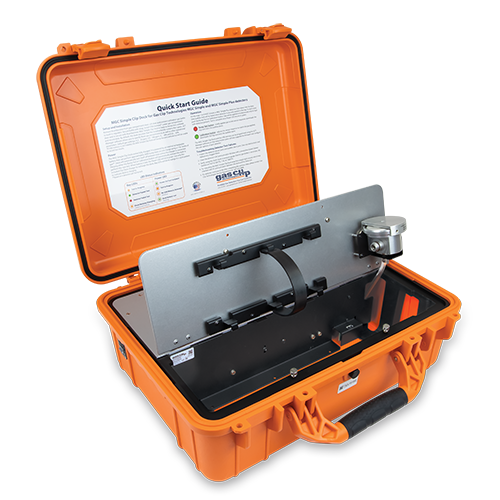

It can be optionally housed in a rugged case or a wall-mountable metal enclosure. Logs are stored on a USB flash drive which can easily be transferred to a computer for analysis.

  • Test 4 detectors at one time
  • Easy 1 button operation
  • Robust rechargeable internal battery, up to 1500 tests before recharging
  • Internal gas cylinder regulator and pressure gauge
  • USB flash memory for bump test and event log storage
  • Optional detector configuration and firmware updates via GCT Manager Software
  • Rugged case or Wall Mount Dock case
  • No computer required to operate

Detector Configuration/Firmware Updates: In order to keep your fleet of gas detectors compliant with specific settings, we allow for the MGC Pump Clip Dock to program each detector during either bump testing or calibration. The programmable fields are as follows: User ID, Calibration Interval, Bump Interval, Self-Test Interval, Low Alarm, High Alarm, Show Sensor Readings, Hide Bump Due LED and Hide Clock. For example, if your company or facility requires each detector on site to have specific alarm set points and a bump test interval, instead of programming each detector individually, the instruments can be group programmed while simultaneously bump testing (4 detectors at a time per MGC Pump Clip Dock) using our GCT Manager software. As firmware updates become available, we can program each MGC Pump Dock to update detectors during bump testing and calibration. Facility safety standard compliance for single gas detectors is now easily achievable.

Event Data and Record Storage: In addition to performing tests, detector configurations and firmware updates, the MGC Pump Dock also stores important information about both the docking station and detectors tested. All tests performed on the docking station can be accessed from either the USB directly or using the GCT Manager software. Each bump test and calibration event is recorded and logged by date, time and serial number. Along with the test records, the individual event logs from each detector are saved. At the time of the test, the detector transmits its’ event log to the memory. By default, the station will save the previous 10 event logs.

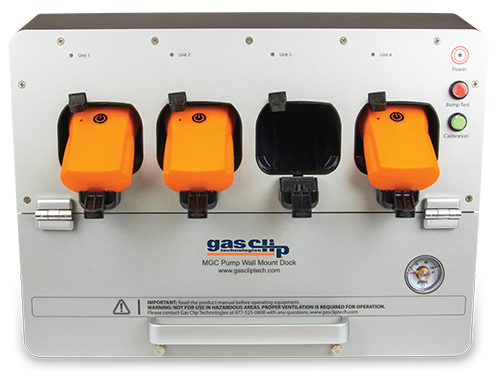

MGC Pump Clip Dock Wall Mount: Gas Clip Technologies offers a wall mount solution for our MGC Pump Clip Dock. Instead of being housed in a portable case, we provide a slim cabinet type case that can be easily mounted on a wall. This version is a perfect fit for facilities or office environments and is available in a high pressure version.

Gas Clip Technologies GCT Manager software provides users the ability to communicate and program the MGC Pump Clip Dock or MGC Pump Clip Dock Wall Mount via IR Link or USB memory stick. In order to communicate with an MGC Pump Clip Dock system via infrared, an IR Link is required. Following is a full list of programmable features offered when communicating with the MGC Pump Clip Dock or MGC Pump Clip Dock Wall Mount using the GCT Manager Software via the IR Link:

  • Docking Station Location
  • Number of Event Logs
  • Auto Power-Off Time
  • Gas Cylinder Expiration Date
  • Gas Cylinder Lot #
  • Gas Cylinder Concentration
  • Feature Administration Controls
  • Station Test Logs
  • Individual Instrument Logs
  • Inventory Report
  • All IR Link Software

*System Requirements: Available for Windows© based PCs (XP, Vista, Windows 7) ; Users must also install Microsoft Net 4.0 software.

No Online Manual available.
Dock Firmware v2.3.37 (2018-05-01)
GCT Manager v1.3.30* (2018-05-01)

*System Requirements: Available for Windows© based PCs
(64 bit versions of Vista, 7, 8.x, 10).
Users must also install Microsoft Net 4.0 software.

No videos available at this time
There are no accessory items available.
4GB USB Drive
4GB USB Drive
Part#: DOCK-USB
4GB USB Drive used for storing events and logs in any Gas Clip Technologies Dock.
Thumbscrews
Thumbscrews
Part#: Thumbscrews
Replacement thumbscrews for any Gas Clip Technologies Dock.
MGC Calibration Gas
You can use any calibration gas cylinder as long as it has a C-10 connector.
MGC Calibration Gas
Part#: MGC-Q-58 / MGC-Q-116
Standard Quad gas mixture:
H2S - 25 ppm
CO - 100 ppm
O2 - 18% vol.
CH4 - 2.5% vol. (50% LEL).
Dock Charger
Detector(s) sold separately.
Dock Charger
Part#: DOCKCHARGER1
Dock charger used to charge the dock's internal battery.
Dock Charger-AU
Detector(s) sold separately.
Dock Charger-AU
Part#: DOCKCHARGER1-AU
Dock charger used to charge the dock's internal battery in AU.
Dock Charger-EU
Detector(s) sold separately.
Dock Charger-EU
Part#: DOCKCHARGER1-EU
Dock charger used to charge the dock's internal battery in EU.
Dock Charger-UK
Detector(s) sold separately.
Dock Charger-UK
Part#: DOCKCHARGER1-UK
Dock charger used to charge the dock's internal battery in UK.
