NOTICE:

The SGC Plus CO has been discontinued.

Longer Life with "Hibernate" mode.

The Single Gas Clip Plus (SGC Plus) is a maintenance-free, handheld gas detector that currently has one model—SGC Plus H2S (for detecting hydrogen sulfide)and includes a “hibernate” mode that allows users to place this disposable single gas detector in a rested state when not in use. The SGC Plus is perfect for seasonal/turnaround contractors or rental fleets. When your job or turnaround is finished, simply synchronize the instrument with our GCT IR Link or SGC Dock to put the detector in a rested state. When you are ready to use the detector again, simply press the power button to reactivate.

Use it when you need it.

By hibernating the detector when not needed, you can spread 2 years of use over a 3 year period. This mode can only be enabled via IR communication with either the IR Link or SGC Dock. Only authorized personnel can place the detectors in “hibernate” mode.

Rugged and configurable.

The SGC Plus also provides the most advanced maintenance free disposable single gas detector on the market. The SGC Plus combines a rugged design with and reliability and advanced sensor resolution (0.1 ppm for H₂S models). This detector allows for quick configuration adjustments to comply with current and future industrial health and safety gas exposure regulations.

Features

• Unmatched sensor reliability for hydrogen sulfide (H₂S)
• “Hibernate” mode
• Adjustable alarm set points
• Real-time gas reading capability
• 0.1 ppm resolution for H₂S sensor and display
• Two-way IR communication for event downloads, bump tests, detector configuration and firmware updates
• Programmable unique 6 digit detector identification
• Bump Test notification and confirmation when intervals are set
• Calibration optional
• Calibration notification and confirmation when intervals are set
• Docking capability with Gas Clip Technologies SGC Dock

Be sure to compare these features to our Multi Gas Clip and Single Gas Clip to find the right product for your current application.

Data Sheet

SGC - SGC Plus Datasheet v2.00

Manual

SGC Manual - English v3.01

Software

SGC Firmware v5.1 (2014-10-06)

Firmware cannot be installed on a PC.
Only download, then upload to the detector or dock.

GCT IR Link Software v2.0.71* (2024-01-09)

*System Requirements: Available for Windows© based PCs only
(32 and 64 bit versions of Vista, 7, 8.x, 10, 11).
(Please use Chrome, Firefox, Opera or Edge to download)

Videos

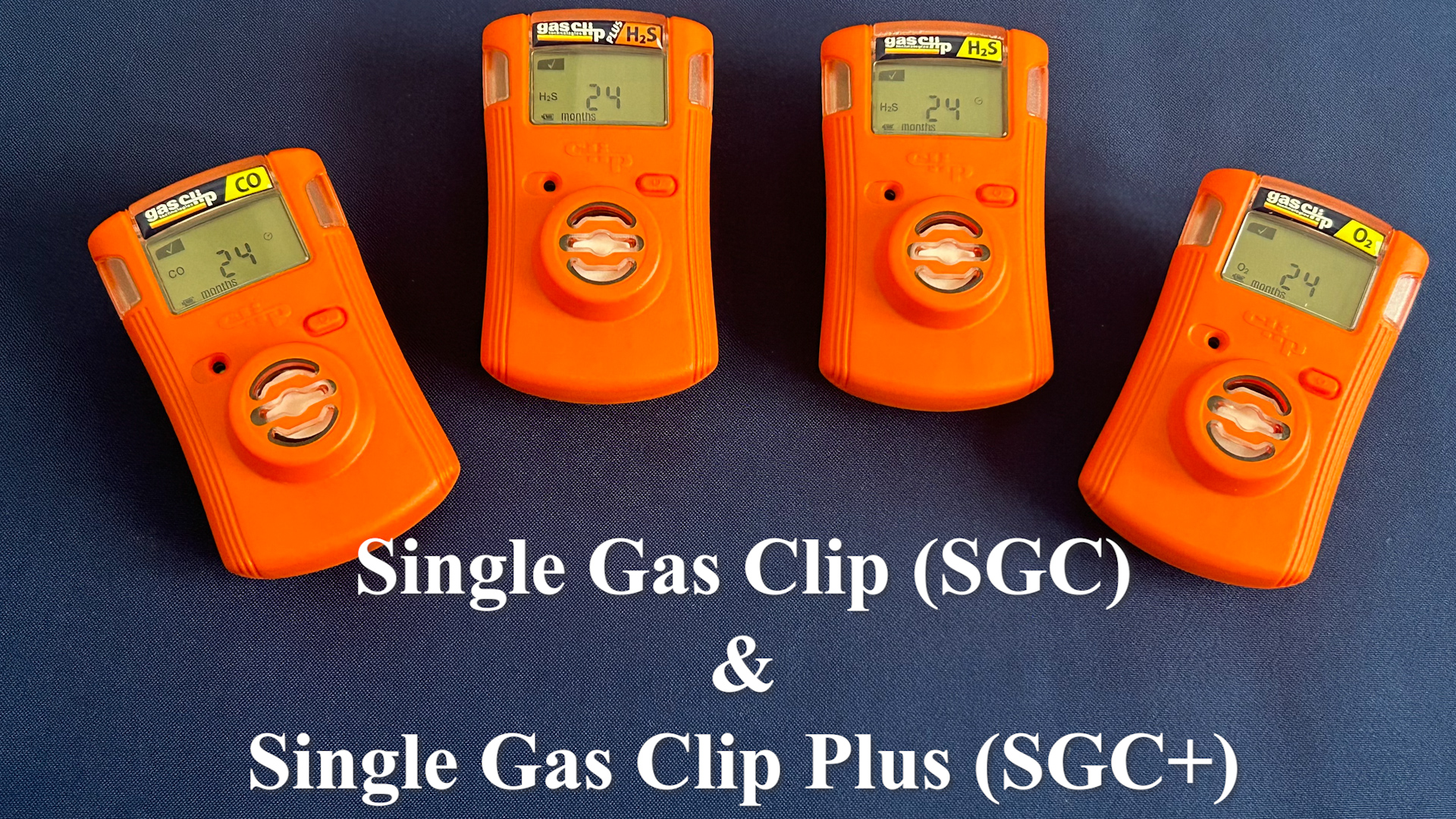

SGC Plus Product Video

Accessories

Detector(s) sold separately.

External Pump

Part#: GCT-XP

The External Pump gives any Gas Clip diffusion detector the ability to take remote samples from up to 75 feet away, drawing air at greater than one foot per second, and comes with a two-year warranty.

Detector(s) sold separately.

SGC Dock

Part#: SGC-DOCK

Testing dock in portable case with gas compartment, regulator, gauge, dock charger & USB memory (for use with SGC & SGC PLUS)

Detector(s) sold separately.

SGC Wall Mount Dock

Part#: SGC-WMDOCK

Testing dock in portable case with gas compartment, regulator, gauge, dock charger & USB memory (for use with SGC & SGC PLUS)

*System Requirements: Available for Windows© based PCs (Vista, 7, 8.x, 10 64 bit versions)

Detector(s) sold separately.

GCT IR LINK communication module with USB cable

Part#: GCT-IR-LINK

GCT IR LINK communication module with USB cable (for use with all GCT detectors

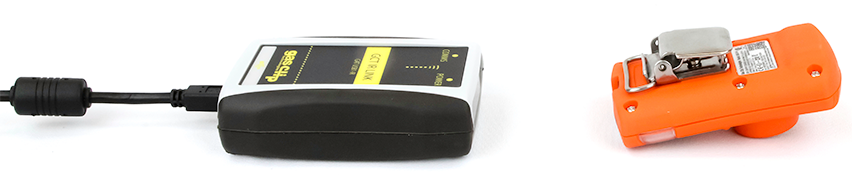

Pictured linked to an SGC-PLUS detector.

GCT IR Link
USB Cable

Part#: GCT IR Link USB Cable

GCT IR Link USB Cable

Detector(s) sold separately.

Dock Charger replacement

Part#: DOCK-CHARGER

Dock charger replacement - std. 110v power supply (for all GCT Clip Docks)

Detector(s) sold separately.

Manual Regulator (non-dock use)

Part#: REG-MANUAL

Manual Regulator (non-dock use) use with all GCT detectors except MGC Pumps

You can use any calibration gas cylinder as long as it has a C-10 connector.

Single Gas Cylinder - H₂S

Part#: SGC-H2S-58 / SGC-H2S-116

Single Gas Cylinder - H₂S - contains 25ppm H₂S/N₂ - Available in 58L or 116L

You can use any calibration gas cylinder as long as it has a C-10 connector.

Single Gas Cylinder - CO

Part#: SGC-CO-58 / SGC-CO-116

Single Gas Cylinder - CO - contains 100 ppm CO/Air - Available in 58L or 116L

Spares and Replacement Parts

Calibration Cap

Part#: SGC-CALCAP

Calibration Cap replacement (for use with SGC & SGC PLUS)

Alligator Clip

Part#: AL-CLIP

Alligator Clip replacement (includes screw) (For use with all GCT Detectors)

Detector(s) sold separately.

Filter replacements
10-Pack

Part#: FILTER-10

Filter replacements - 10-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)

Detector(s) sold separately.

Filter replacements
50-Pack

Part#: FILTER-50

Filter replacements - 50-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)
