Single Gas Clip Dock

Single Gas Clip Dock and Single Gas Clip Dock Wall Mount

Part# SGC-DOCK / Part# SGC-WMDOCK

Single-Gas-Clip Dock front with detectors and parts
Detector(s) sold Separately.
Not included with Dock

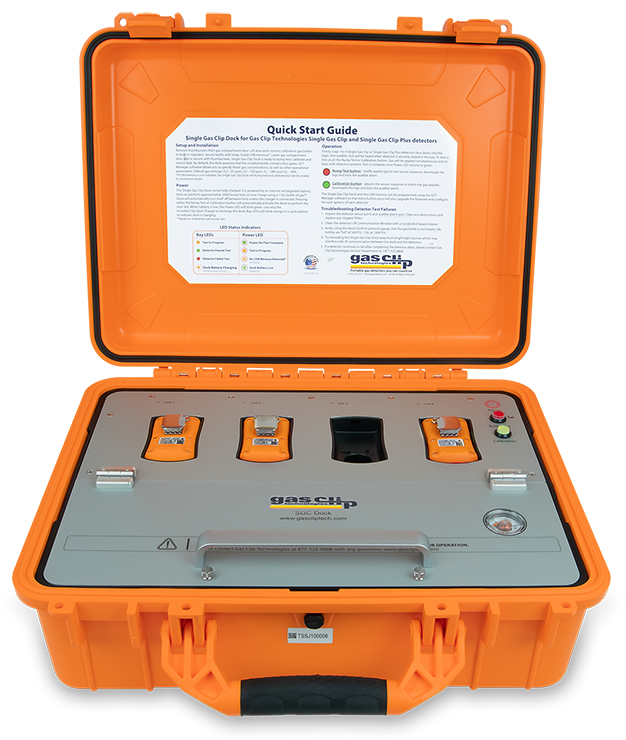

Single-Gas-Clip Dock front with detectors and parts Single-Gas-Clip Dock front with detectors SGC-DOCK left with detectors SGC-DOCK right with detectors SGC-WMDOCK Product Image

Rugged and economical to use

Gas Clip Technologies Single Gas Clip Dock (SGC Dock) is an all in one docking station designed for maximum testing efficiency and portability. Housed in a rugged case with robust USB memory, this station will be able to accurately test and record all monitor data while reducing the testing time and gas usage.

Why test just one when you can test 4!

Traditional docking stations are only designed to test one instrument at a time, resulting in time consuming testing periods as well as unnecessary usage of testing gas. Gas Clip Technologies has significantly improved both testing time and test gas usage with the SGC Dock; users can now test 4 instruments simultaneously saving both time and money.

Assembled in USA
Sold through distributors worldwide.
Features

  • Test 4 detectors at one time, up to 12 instruments in a minute
  • Easy 1 button operation
  • Robust rechargeable internal battery, hundreds of tests before recharging
  • Internal gas cylinder regulator and pressure gauge
  • 2 GB USB memory for bump test and event log storage
  • Optional detector configuration and firmware updates via GCT Manager Software
  • Rugged case or Wall Mount Dock
  • No computer required to operate

Detector Configuration/Firmware Updates: In order to keep your fleet of gas detectors compliant with specific settings, we allow for the SGC Dock to program each detector during either bump testing or calibration. The programmable fields are as follows: User ID, Calibration Interval, Bump Interval, Self-Test Interval, Low Alarm, High Alarm, Show Sensor Readings, Hide Bump Due LED and Hide Clock. For example, if your company or facility requires each detector on site to have specific alarm set points and a bump test interval, instead of programming each detector individually, the instruments can be group programmed while simultaneously bump testing (4 detectors at a time per dock) using our GCT Manager software. As firmware updates become available, we can program each SGC Dock to update detectors during bump testing and calibration. Facility safety standard compliance for single gas detectors is now easily achievable.

Event Data and Record Storage: In addition to performing tests, detector configurations and firmware updates, the SGC Dock also stores important information about both the docking station and detectors tested. All tests performed on the docking station can be accessed from either the USB directly or using the GCT Manager software. Each bump test and calibration event is recorded and logged by date, time and serial number. Along with the test records, the individual event logs from each detector are saved. At the time of the test, the detector transmits its’ event log to the memory. By default, the station will save the previous 10 event logs.

SGC Dock Wall Mount: Gas Clip Technologies offers a wall mount solution for our SGC Dock. Instead of being housed in a case, we provide a slim cabinet type case that can be easily mounted on a wall. This option can be selected at the time of order or can be ordered separately to convert your existing SGC Dock to a SGC Dock Wall Mount. This option is a perfect fit for facilities or office environments.

Gas Clip Technologies GCT Manager software provides users the ability to communicate and program the SGC Dock or SGC Dock Wall Mount via IR Link or USB memory stick. In order to communicate with a SGC Dock system via infrared, an IR Link is required.

Following is a full list of programmable features offered when communicating with the SGC Dock or SGC Dock Wall Mount using the GCT Manager Software via the IR Link:

  • Docking Station Location
  • Number of Event Logs
  • Auto Power-Off Time
  • Gas Cylinder Expiration Date
  • Gas Cylinder Lot #
  • Gas Cylinder Concentration
  • Feature Administration Controls
  • Station Test Logs
  • Individual Instrument Logs
  • Inventory Report
  • All IR Link Software features

*System Requirements: Available for Windows© based PCs (XP, Vista, Windows 7, Windows 10, Windows 11).

Data Sheets
Quick Start Guide
Software / Firmware
Videos
Accessories
GCT IR Link

*System Requirements: Microsoft Supported Windows Platforms

GCT IR LINK communication module with USB cable
Part#: GCT-IR-LINK
GCT IR LINK communication module with USB cable (for use with all GCT detectors)

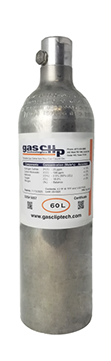

Single Gas Cylinder - H<sub>2</sub>S
You can use any calibration gas cylinder as long as it has a C-10 connector.
Single Gas Cylinder - H2S
Part#: SGC-H2S-58 / SGC-H2S-116
Single Gas Cylinder - H2S - contains 25ppm H2S/N2 - Available in 58L or 116L
Single Gas Cylinder - CO
You can use any calibration gas cylinder as long as it has a C-10 connector.
Single Gas Cylinder - CO
Part#: SGC-CO-58 / SGC-CO-116
Single Gas Cylinder - CO - contains 100 ppm CO/Air - Available in 58L or 116L
Single Gas Cylinder - O<sub>2</sub>
You can use any calibration gas cylinder as long as it has a C-10 connector.
Single Gas Cylinder - O2
Part#: SGC-O2-58
Single Gas Cylinder - O2 - contains 18% O2.Available in 58L only
Dock High Pressure Conversion
Dock High Pressure Conversion
Part#: DOCK-REGCONV-HP
Conversion of any standard GCT Clip Dock to High Pressure (for all GCT Clip Docks - GCT labor included)
Spares and Replacement Parts
4GB USB Drive
4GB USB Drive
Part#: DOCK-USB
4GB USB Drive used for storing events and logs in any Gas Clip Technologies Dock.
Dock Thumb Screw
Dock Thumb Screw
Part#: Dock-Thumb Screw
Dock Thumb Screw replacement (for all GCT Clip Docks)
Dock Charger replacement
Dock not included.
Dock Charger replacement
Part#: DOCK-CHARGER
Dock charger replacement - std. 110v power supply (for all GCT Clip Docks)

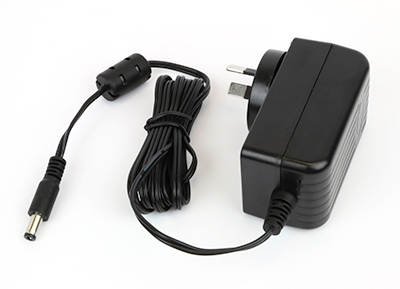

Dock Charger-AU
Dock not included.
Dock Charger-AU
Part#: DOCK-CHARGER-AU
Dock charger used to charge the dock's internal battery in AU.

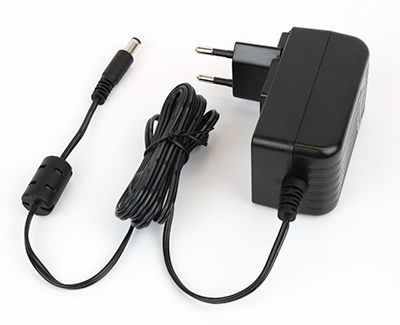

Dock Charger-EU
Dock not included.
Dock Charger-EU
Part#: DOCK-CHARGER-EU
Dock charger used to charge the dock's internal battery in EU.

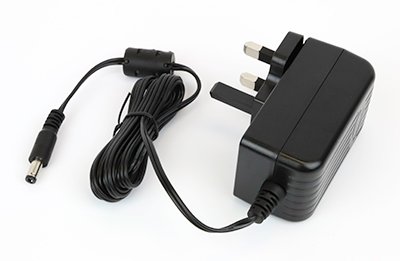

Dock Charger-UK
Dock not included.
Dock Charger-UK
Part#: DOCK-CHARGER-UK
Dock charger used to charge the dock's internal battery in UK.
