Gas Cylinder Information
When calibrating your monitors manually or with the SGC Dock, MGC Dock, or MGC Simple Dock, use NIST traceable gas provided by Gas Clip Technologies in either 60 or 120 liter bottles.

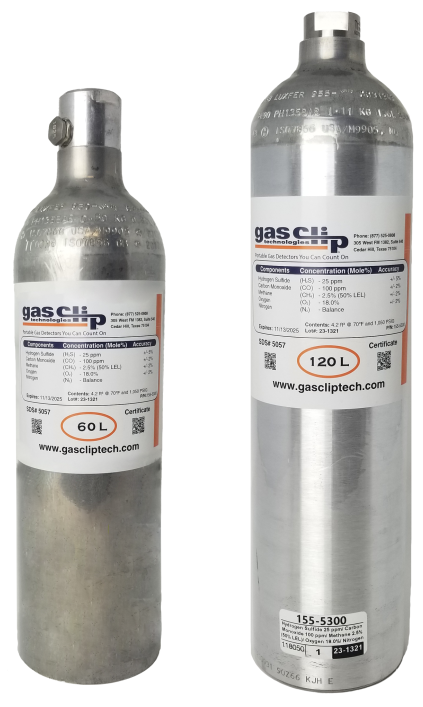

60L Aluminum
Pressure: 500psi
Gas Type: See below
Dimensions: 14.25" x 3.53"
Water Capacity: 1.72 liters
Material: Aluminum Alloy
Weight: 1lb 12oz.
Valve Inlet: 5/8"-18 UNF (C10)
Contents: 2 cu ft.

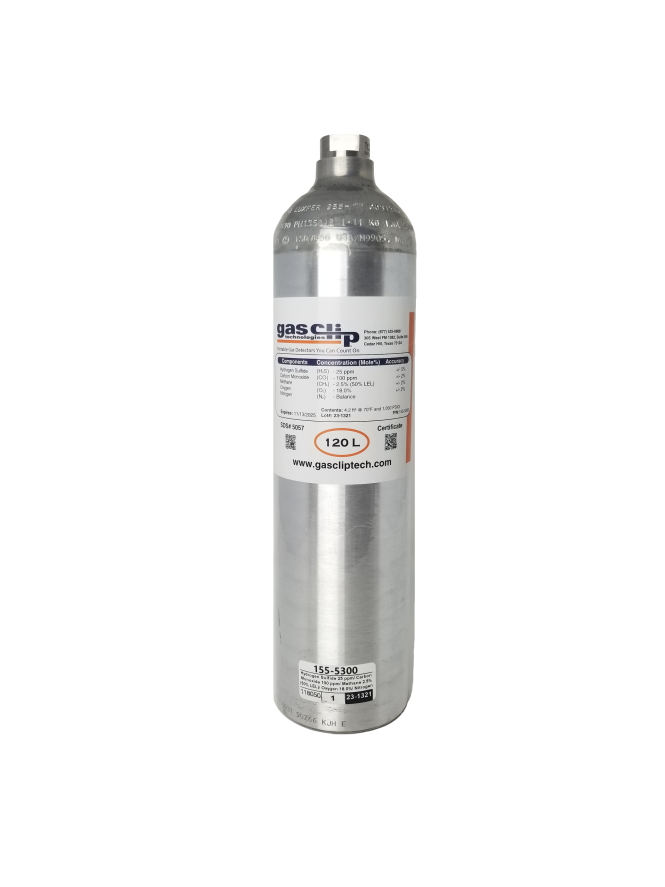

120L Aluminum
Pressure: 1000psi
Gas Type: See below
Dimensions: 14.3" x 3.5"
Water Capacity: 1.72 liters
Material: Aluminum Alloy
Weight: 2lbs
Valve Inlet: 5/8"-18 UNF (C10)
Contents: 4 cu ft.
NOTE:
You can use any calibration gas cylinder as long as it has a C-10 connector.Quad Gas Cylinder
Part#: MGC-Q-60 /
MGC-Q-120
Contains 25 ppm H2S,
100 ppm CO,
18% O2,
& 50% LEL (2.5% vol Methane.)
Available in 60L or 120L
MGC-Q-120
Contains 25 ppm H2S,
100 ppm CO,
18% O2,
& 50% LEL (2.5% vol Methane.)
Available in 60L or 120L
Single Gas Cylinder - H2S
Part#: SGC-H2S-60 /
SGC-H2S-120
Single Gas Cylinder - H2S
Contains 25ppm H2S/N2
Available in 60L or 120L
SGC-H2S-120
Single Gas Cylinder - H2S
Contains 25ppm H2S/N2
Available in 60L or 120L
Single Gas Cylinder - CO
Part#: SGC-CO-60 /
SGC-CO-120
Single Gas Cylinder - CO
Contains 100 ppm CO/Air
Available in 60L or 120L
SGC-CO-120
Single Gas Cylinder - CO
Contains 100 ppm CO/Air
Available in 60L or 120L
Single Gas Cylinder - O2
Part#: SGC-O2-60
Single Gas Cylinder - O2
Contains 18% O2
Available in 60L only
Single Gas Cylinder - O2
Contains 18% O2
Available in 60L only
